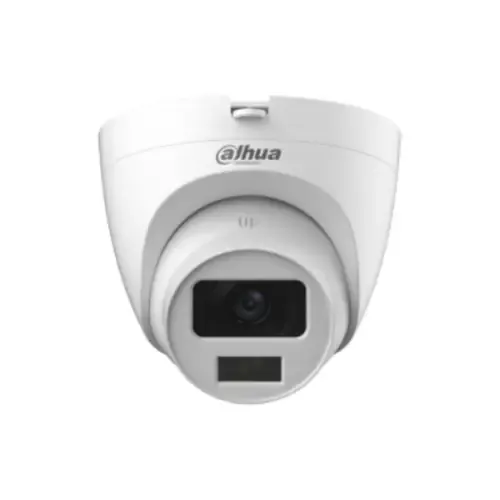

Dahua DH-HAC-HDW1500CLQ-IL-A 5MP Dual Light HDCVI Dome Camera

Dahua DH-HAC-HDW1500CLQ-IL-A 5MP Dual Light HDCVI Dome Camera



Key Features

  • Model: DH-HAC-HDW1500CLQ-IL-A
  • Max 25 fps@5MP (16:9 video output)
  • Smart Dual Light, Built-in Microphone
  • 3.6 mm fixed lens (2.8 mm optional)
  • Illumination Distance: IR: 20 m (65.62 ft)



More Specification

General
Casing Plastic
Dimensions φ97.1 mm × 93.8 mm (φ3.82″ × 3.69″)
Weight Net Weight 0.19 kg (0.42 lb)
Gross Weight 0.3 kg (0.66 lb)
Pan/Tilt/Rotation Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Operating Conditions Operating Temperature –40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity <95% (RH), non-condensing
Storage Conditions Storage Temperature –40 °C to +55 °C (–40 °F to +131 °F)
Storage Humidity <95% (RH), non-condensing
Power Supply 12 VDC ± 30%
Power Consumption Max 4.5 W (12 VDC, WLED on)
Camera
Image Sensor 5 MP CMOS
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Minimum Illumination 0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
IR Distance 20 m (65.62 ft)
Warm Light: 20 m (65.62 ft)
IR On/Off Control Auto/Manual
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max Aperture F1.6
Angle of View 2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 92°; V: 48°; D: 109°
Focus Control Fixed
Close Focus Distance 2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)
Video
Resolution 2880 (H) × 1620 (V)
Frame Rate CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Day/Night Auto(ICR)/Color/B/W
Gain Control Auto/Manual
Noise Reduction 2D NR
Warranty
Warranty 01 Year
